| Media | PP;PES;PTFE;PVDF;Nylon; etc |
|---|---|
| Outer Dimension(mm) | 60;69 |
| Length(mm) | 2.5";5.0" |
| Sterilization | Gamma Irradiation |

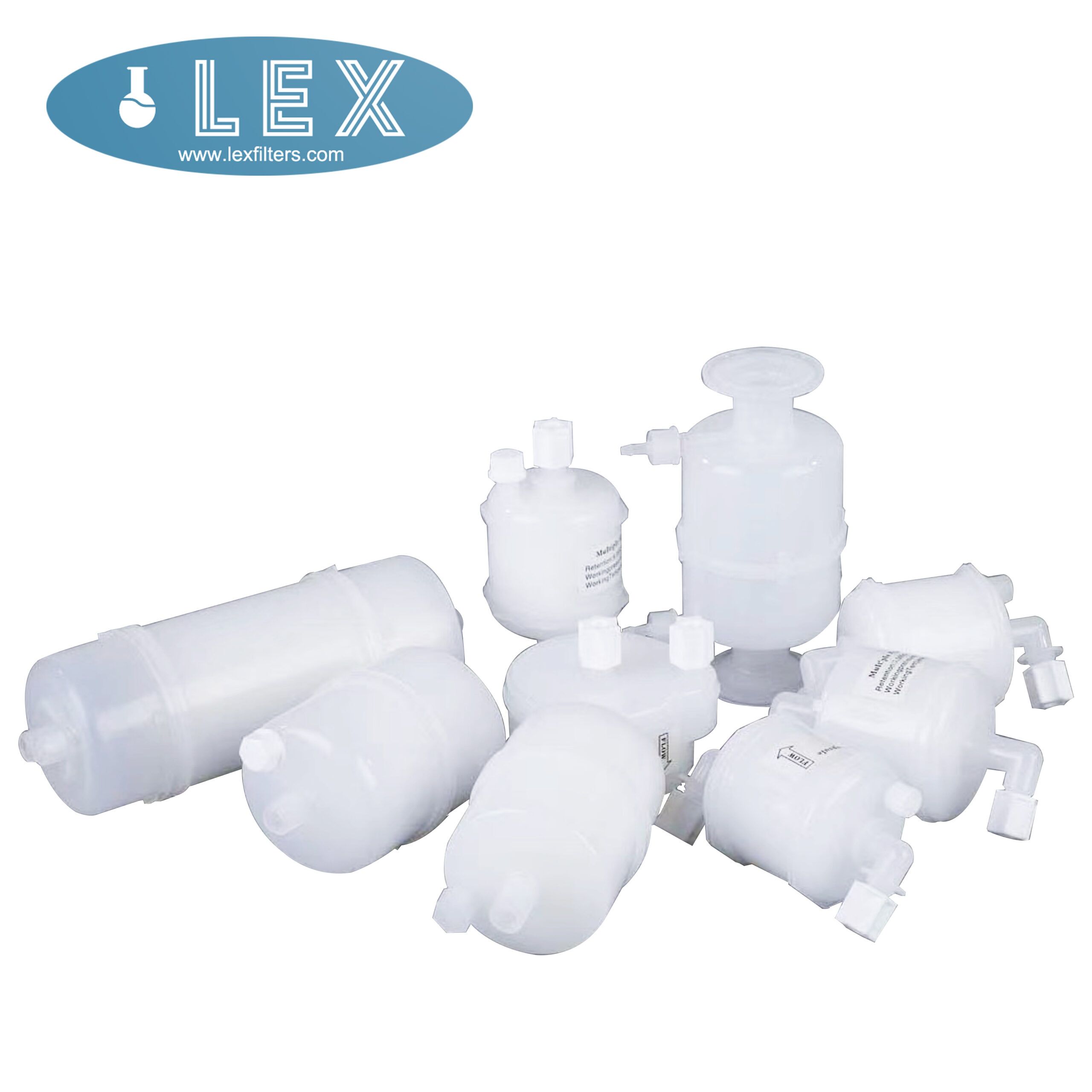

LEXFILTERS Disposable Capsule Filter The outer shell is made of high temperature polypropylene, and the inner filter is made of folded filter and hot melt welding. The product does not contain adhesive and other chemical substances. The filter has different material membrane and aperture to choose from, and can be autoclave, suitable for 1-20ml laboratory and other small dose of liquid or gas filtration.
Structural components
| Media Material | PP; PES;PTFE; PVDF;Nylon Membrane |
| Inner Corn | Polypropylene |
| Housing/Center/End Cover | Polypropylene |
| Support Layer | Polypropylene |
Dimensions
| Outer Dimension(mm) | 60mm/69mm |
| Length(mm) | 2.5”;5” |
| Connectors | 1/4” MNPT;1/2” MNPT;9/16” hose barb;11/2” Sanitary Flange; 1/4” compression joint |
| Filtration Area (m²) | 0.05m²~0.44m² |
Performance
| Normal Operating Temperature（℃） | 60 |
| Maximum Operating Temperature（℃） | 80 |
| Normal Flow Direction | 4.2bar(60psi)@25℃ |
| Reverse Flow Direction | 2.1bar(30psi)@25℃ |
| Sterilization | 30 minutes at Gamma Irradiation |
