Media | Polypropylene/Polyester |
---|---|
Pore Size(μm) | 1;5;10.0;20.0 |
Diamter(mm) | 175;108;150 |
Height(mm) | 430;810;230;380;510 |

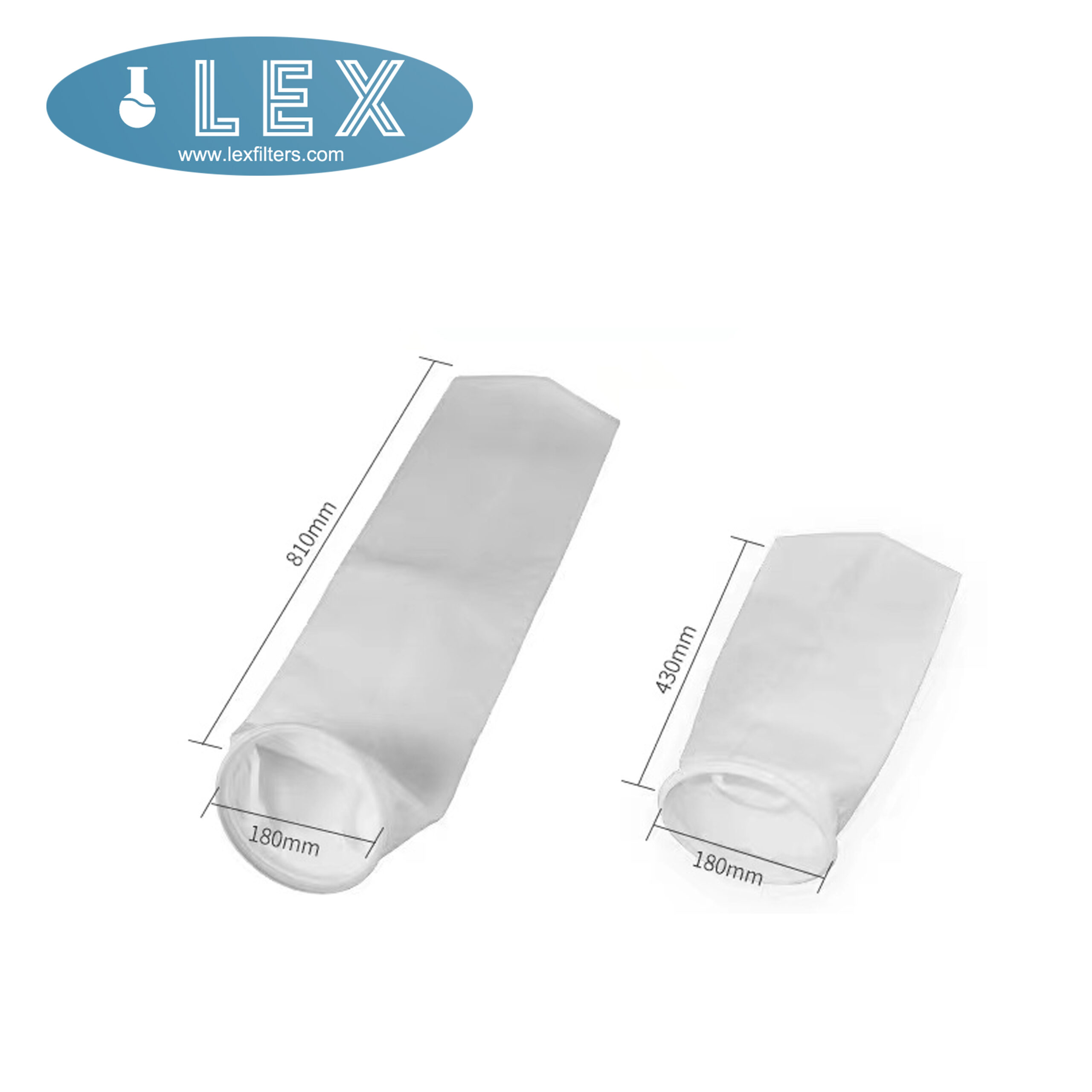

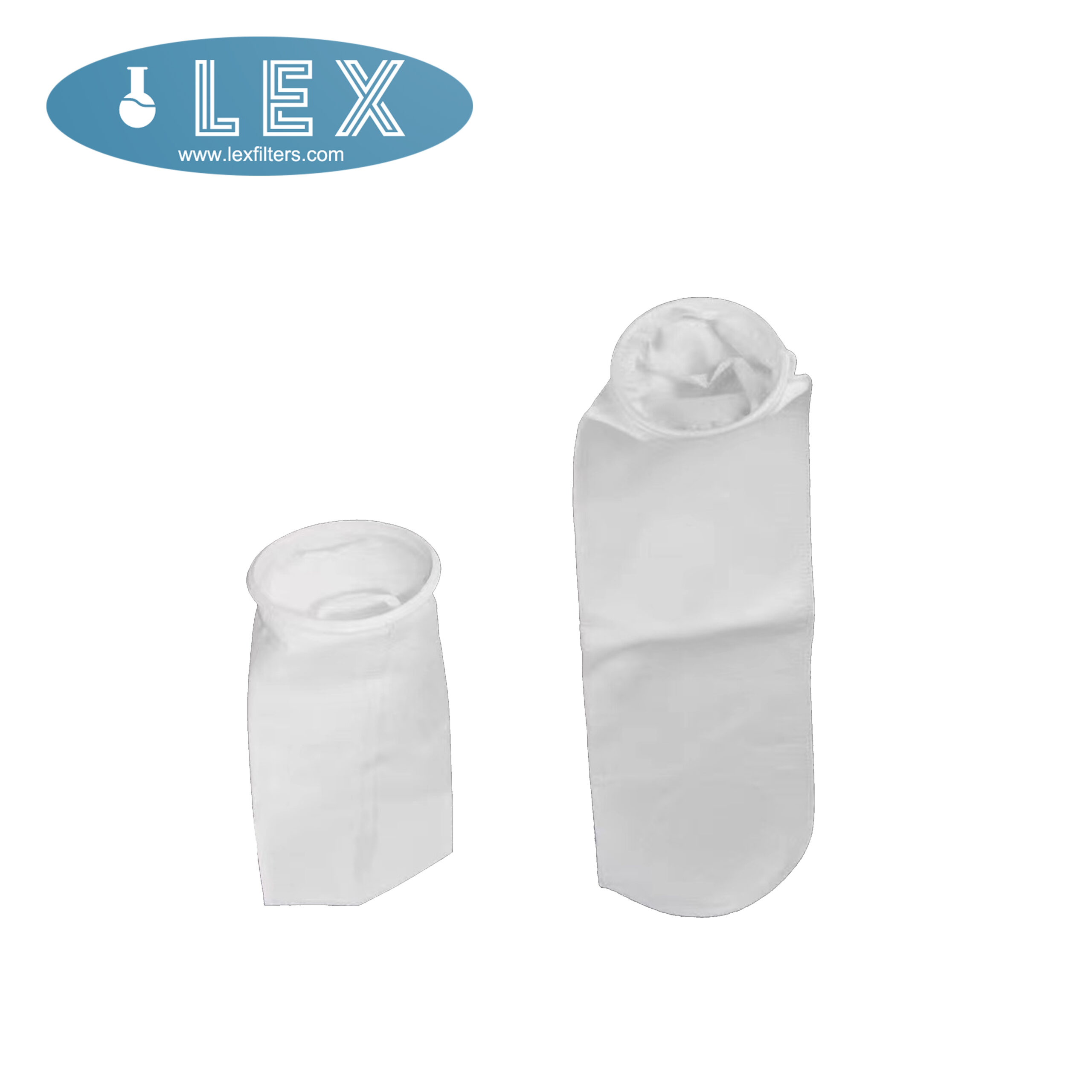

LEXFILTERS Filter Bag Non-woven needled felt is a kind of deep filter, fiber into three-dimensional, height of volume 3 d depth, can effectively remove solid and soft particles, to filter traffic particularly big, small resistance, gradient aperture structure, long service life, low cost, non-woven matte on the surface, such as singeing special handling to ensure no fiber loss occurs, replace the operation is simple.
Economic
Filler Bags provide cost effective filtration for industrial applications.High filtration performance and extended life time, Washable and reusable.
Large Flow Rate
Suitable for the large volume or high viscosity liquid filtration.
Wide Chemical Compatability
Filter bags made of different material s in various micron ratings. Which can be compatible for many situations.
100% Welded Seams
All abutting sdges are welded without media migration or bypass. Customized Filter Bags are available.
Art.No. | Flow Rate(m³/h) | Filtration Area (m²) | Diameter(mm) | Height(mm) |
1 | 20 | 0.25 | 175 | 430 |
2 | 40 | 0.5 | 175 | 810 |
3 | 6 | 0.1 | 108 | 230 |
4 | 12 | 0.15 | 108 | 380 |
5 | 25 | 0.3 | 150 | 510 |
