| Media | Melt Blown Polypropylene |
|---|---|
| Sealing | Silicone;EPDM;Viton;Teflon;Nitrile;etc |
| Length | 10”,20”,30”,40 |
| Filtration Area(m²) | 0.4m²per 10” |

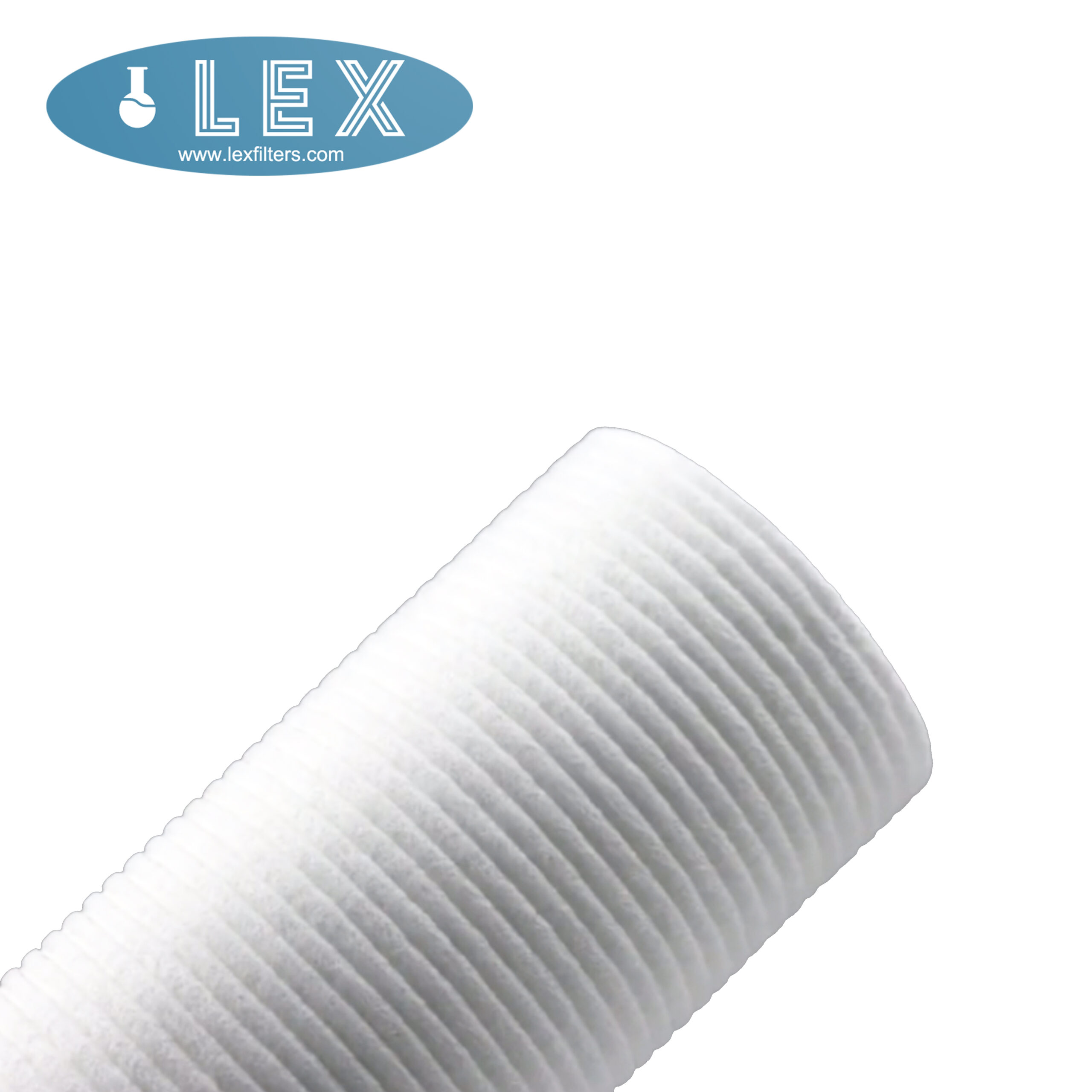

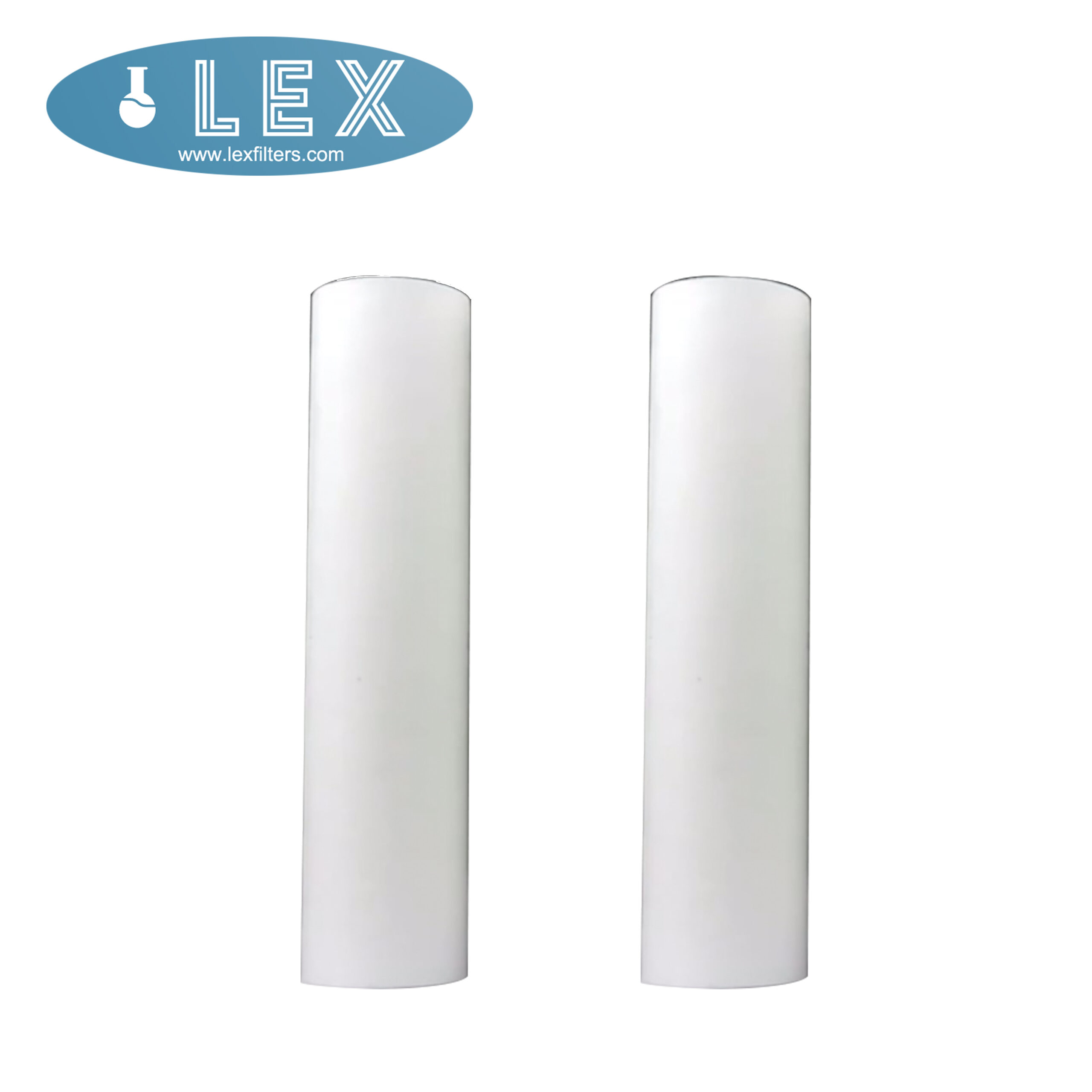

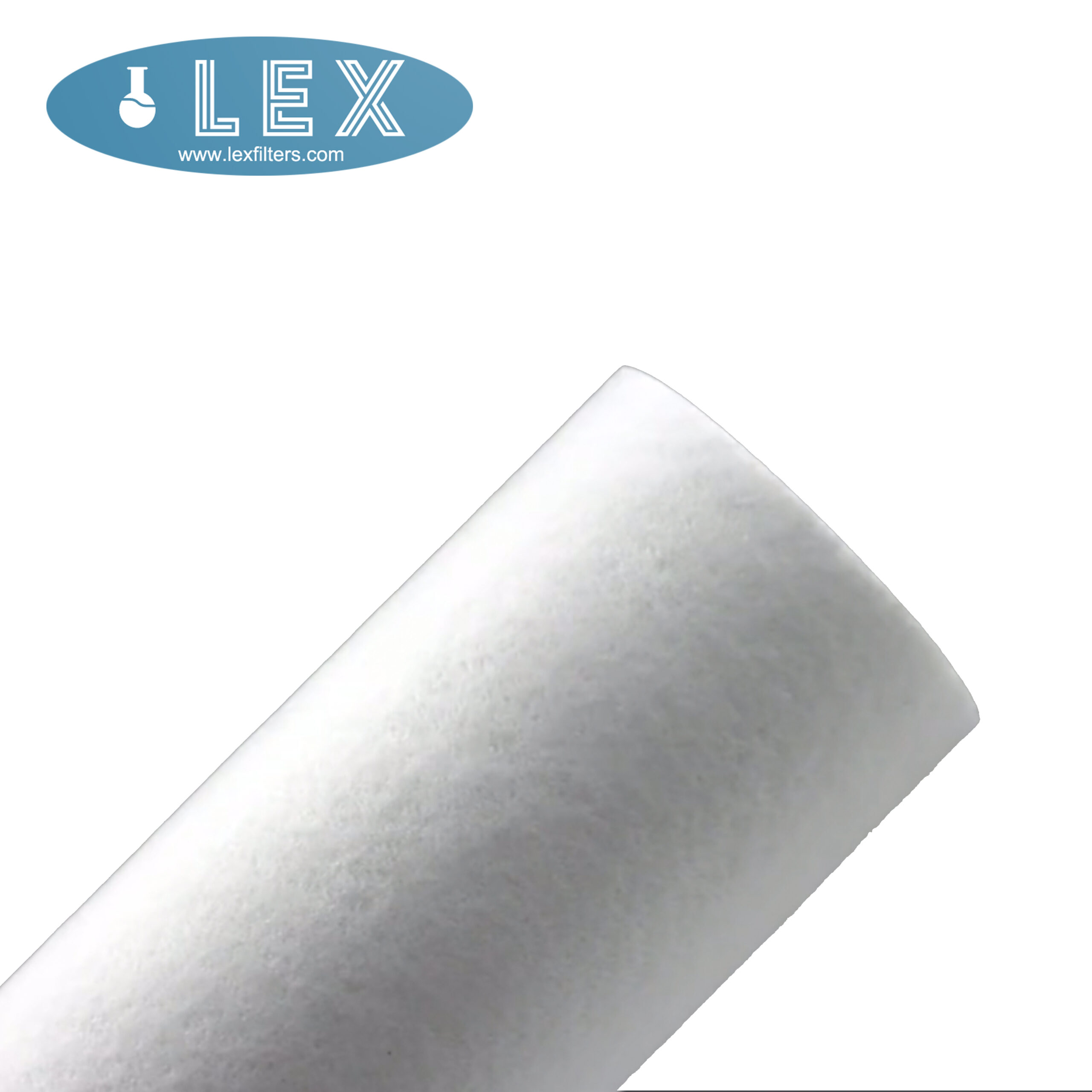

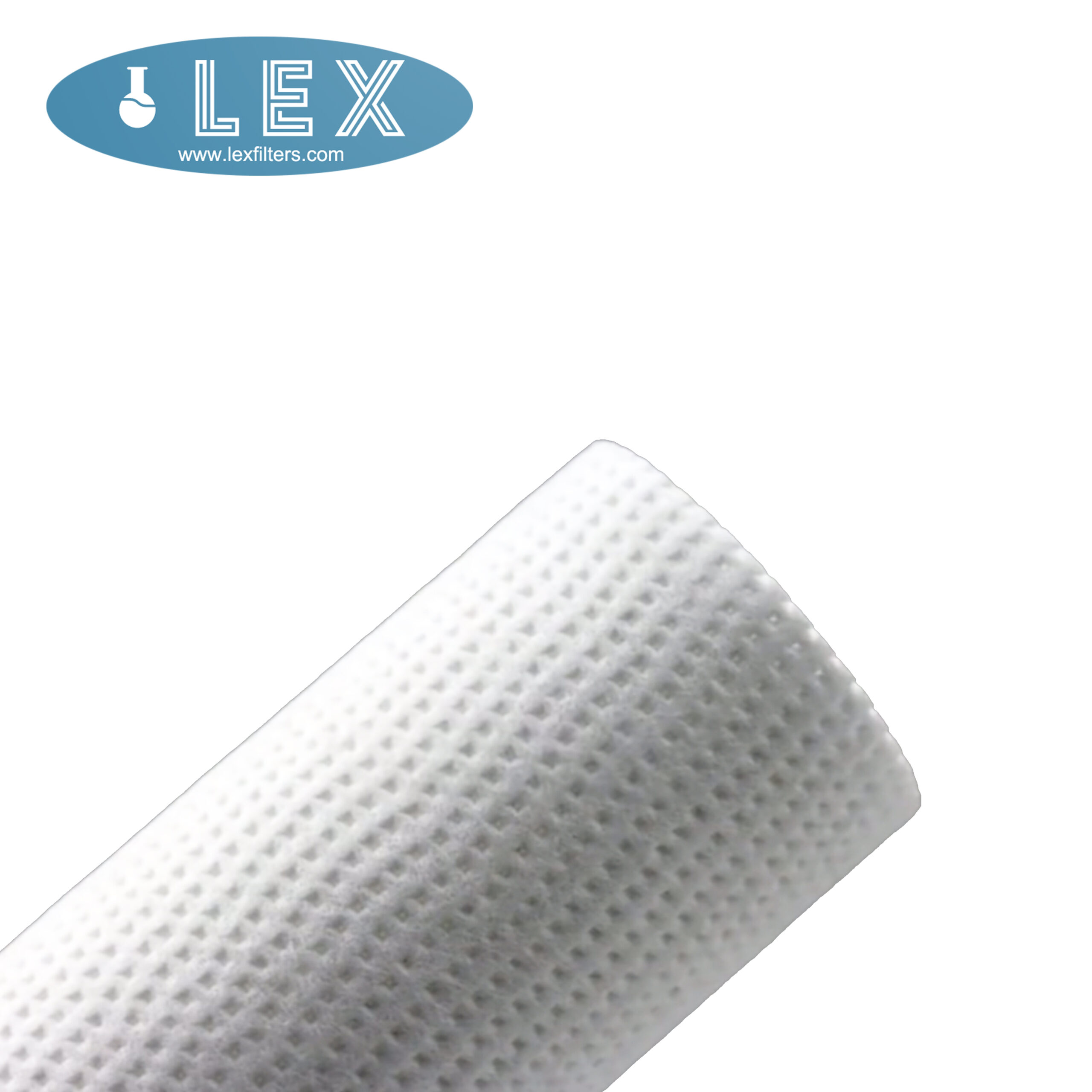

LEXFILTERS Using sanitary grade polypropylene as raw material, after heating hot melt spinneret traction into a certain aperture gradient of deep filter filter, the whole one-time production. High flux, low price, often used for liquid pre-filtration.
Structural components
| Media Material | Melt Blown Polypropylene |
| Pore Size(μm) | 1.0;5.0;10.0;20.0;50.0;70.0;100;150 |
| Inner Corn | Polypropylene;Coreless |
| Filtration Efficiency | >80% |
| O-rings/gaskets | Silicone;EPDM;Viton;Teflon;Nitrile;etc |
Dimensions
| Outer Dimension | 63mm(2.5″);114m(4.5″) |
| Inner Dimension | 28mm(1.1”) |
| Length | 254mm(10”);508mm(20”);762mm(30”);1016mm(40”) |
| Filtration Area(m²) | 0.4m²per 10” |
Performance
| PH Value | 1-13 |
| Normal Operating Temperature（℃） | up to 50 |
| Maximum Operating Temperature（℃） | 80 |
| Normal Flow Direction | 4.0bar(58psi)at25℃ |
| Reverse Flow Direction | 2.0bar(29psi)at25℃ |
| Sterilization | Not recommended |
After-sales Service Team.
OEM Service: Customized Logo, Customized Package.
Delivery time:3-5 working days.
Shipping: Express(FedEx;UPS;TNT;DHL,etc) / Sea shipping/Air shipping/By train.
Packing: Free pallet package (OEM Packing is also available).
