| Media | Polypropylene;Bleached Cotton;Glass Fiber |
|---|---|
| Sealing | Silicone;EPDM;Viton;Nitrile;etc |
| Length | 10”,20”,30”,40 |
| Filtration Area(m²) | 0.4m²per 10” |

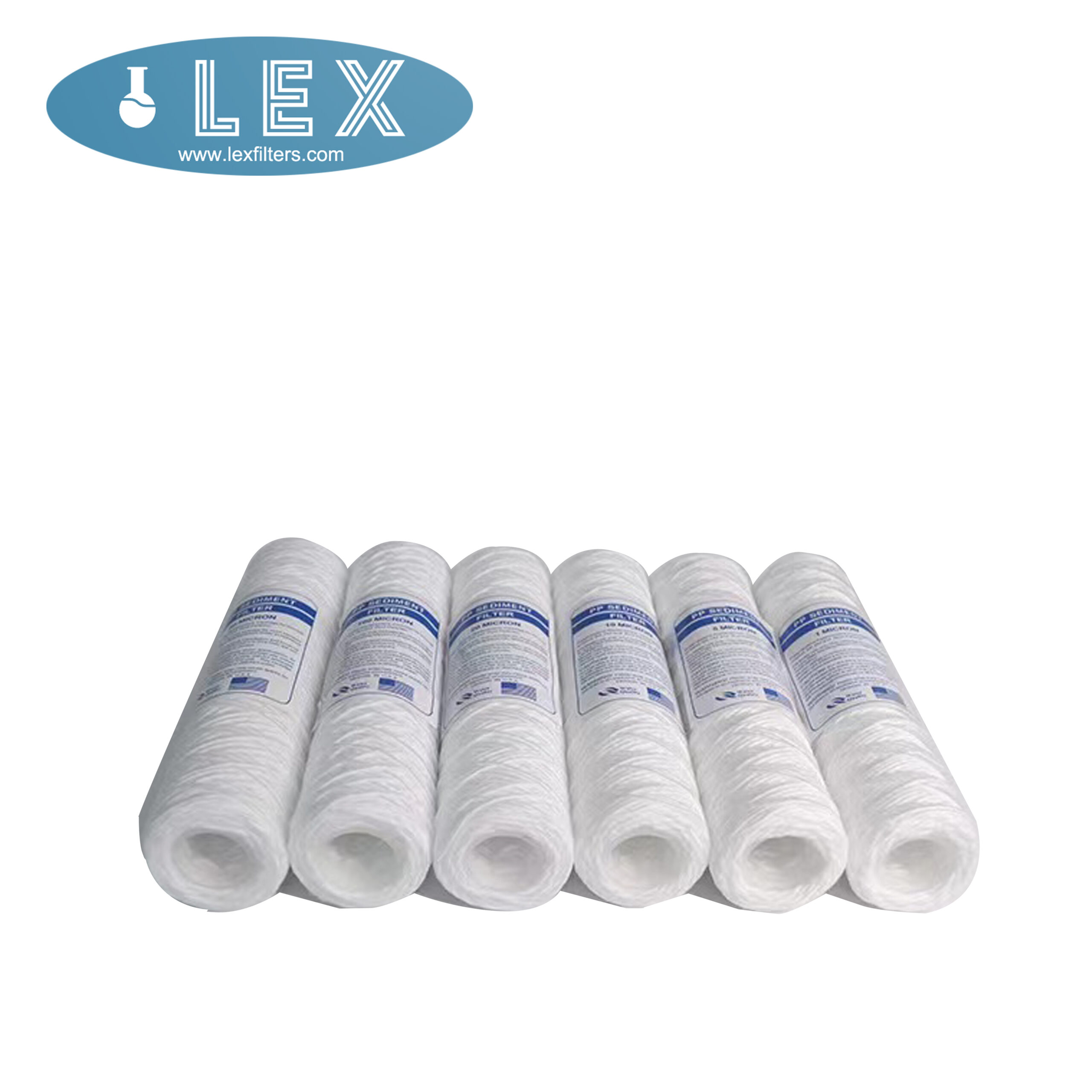

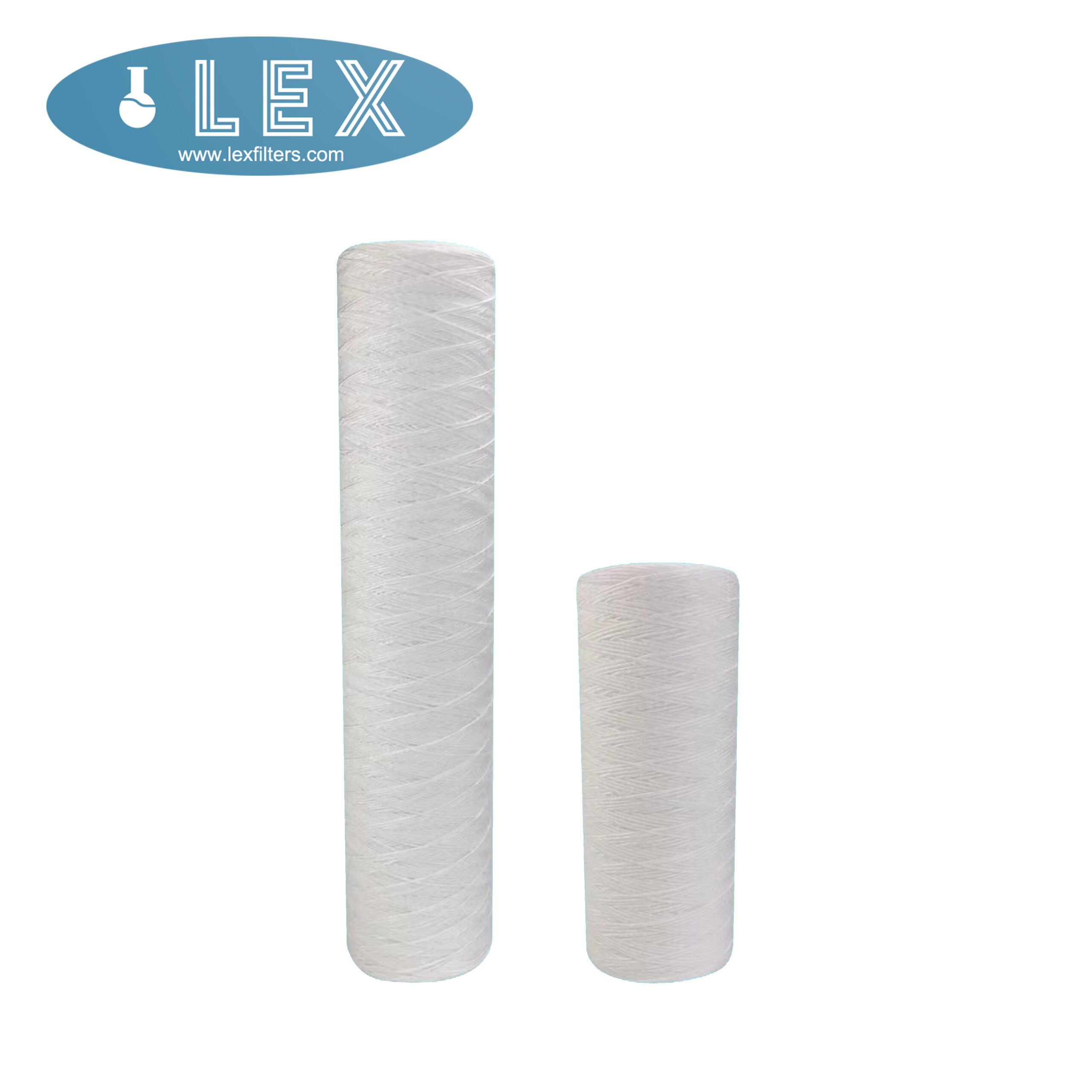

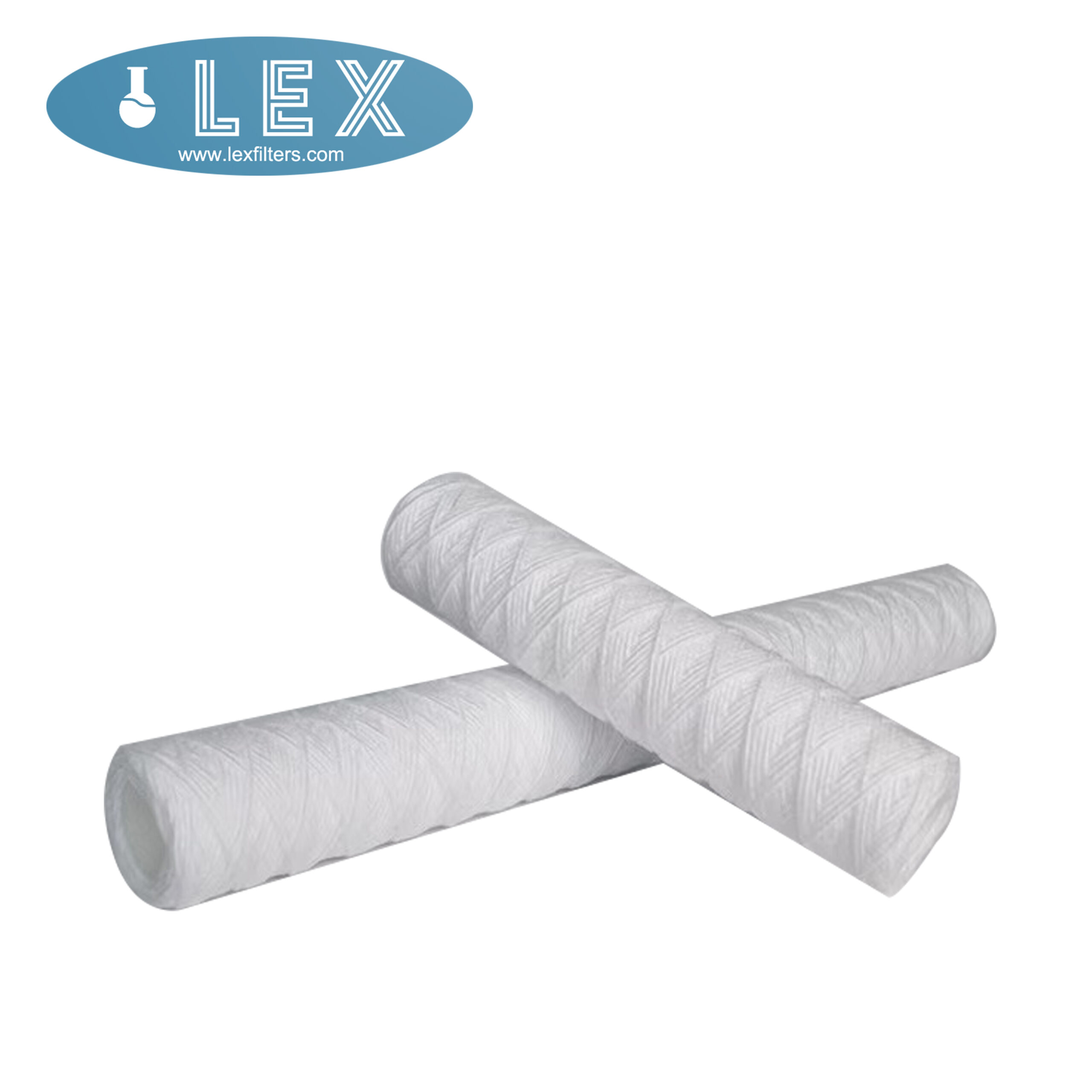

LEXFILTERS High Flow String Wound Cartridge Filter Using special polypropylene wire or degreased cotton wire, according to a certain aperture gradient winding, the whole one-time production. Deep filtration, high flux, high contamination, suitable for liquid filtration.
Structural components
| Media Material | Polypropylene; Bleached Cotton; Glass Fiber |
| Pore Size(μm) | 1.0;5.0;10.0;20.0;50.0;75.0;100; |
| Inner Corn | Polypropylene;Stainless Steel |
| Filtration Efficiency | >80% |
| O-rings/gaskets | Silicone;EPDM;Viton;Nitrile;etc |
Dimensions
| Outer Dimension | 63mm(2.5″);114m(4.5″) |
| Inner Dimension | 28mm(1.1”) |
| Length | 254mm(10”);508mm(20”);762mm(30”);1016mm(40”) |
| Filtration Area(m²) | 0.4m²per 10” |
Performance
| PH Value | 1-13 |
| Maximum Operating Temperature（℃） | Polypropylene:80℃;
Bleached Cotton:150℃ |
| Maximum Different Pressure | Polypropylene:4.0bar(58psi) at 25℃;
Bleached Cotton:5.0bar(72psi) at 25℃ |
| Sterilization | Not recommended |
After-sales Service Team.
OEM Service: Customized Logo, Customized Package.
Delivery time:3-5 working days.
Shipping: Express(FedEx;UPS;TNT;DHL,etc) / Sea shipping/Air shipping/By train.
Packing: Free pallet package (OEM Packing is also available).
Send us a message if you have any questions or request a quote. Our experts will give you a reply within 24 hours and help you select the right product you want.
