| Media | Hydrophobic PVDF |
|---|---|
| Sealing | Silicone;EPDM;Viton;Teflon;Nitrile;etc |
| Length | 10”,20”,30”,40” |
| Housing/Center/End Cover | Polypropylene |
LEXFILTERS Hydrophobic PVDF Pleated Cartridge Filter is Made of polypropylene skeleton or stainless steel lining by hot melt welding. Natural hydrophobic, uniform aperture, high voltage. Resistant to strong acid and alkali. High-temperature resistance, suitable for gas sterilization filtration.
Structural components
| Media Material | Hydrophobic PVDF |
| Inner Corn | Reinforced Polypropylene |
| Housing/Center/End Cover | Reinforced Polypropylene |
| Support Layer | Polypropylene |
| Pore Size(μm) | 0.1;0.2;0.45;0.65;1.0;3.0 |
| Seal Method | Thermal bonded,No Adhesives |
| O-rings/gaskets | Silicone;EPDM;Viton;Teflon;Nitrile;etc |
Dimensions
| Outer Dimension | 69mm(2.75”) |
| Inner Dimension | 33mm(1.30”) |
| Length | 254mm(10”);508mm(20”);762mm(30”);1016mm(40”) |
| Filtration Area | 0.65㎡per 10” |

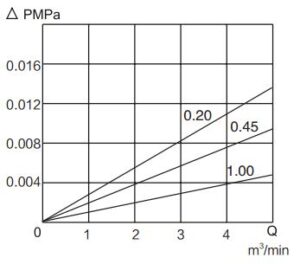

Performance
| PH Value | 1-13 |
| Normal Operating Temperature（℃） | up to 65 |
| Maximum Operating Temperature（℃） | 90 |
| Normal Flow Direction | 4.2bar(60psi)@25℃ |
| Reverse Flow Direction | 2.1bar(30psi)@25℃ |
| Sterilization | 30 minutes at 135℃
Cumulative time:3 hours Autoclave 30mins(optional) |
Safety
| Endotoxin | <0.25EU/ml |
| Extractables | 0.03g/10” |
| HPVDF01010KKS H=chemical PVDF=Hydrophobic PVDF 010=Pore size 0.10μm 10=10″ KK=DOE S=Silicone |
|||||||||||
| Code | Grade | Code | Media | Code | Pore Size(um) | Code | Length(in) | Code | Connection | Code | O-ring/Gasket |
| H | Chemical | PVDF | Hydrophobic PVDF | 010 | 0.20 | 10 | 10″ | KK | DOE | S | Silicone |
| E | Electronic | 020 | 0.45 | 20 | 20″ | LN | 222/Fin | V | Viton | ||
| P | Phamaer | 065 | 0.65 | 30 | 30″ | MN | 226/Fin | E | Epdm | ||
| F | Food | 100 | 1.00 | 40 | 40″ | LF | 222/Flat | N | Nitrile | ||
| PF | 215/Flat | T | Teflon | ||||||||
