| Media | PP;PES;PVDF;PTFE;Nylon |
|---|---|
| Sealing | Silicone;EPDM;Viton;Teflon;Nitrile;etc |
| Length | 2.5":5" |
| Housing/Center/End Cover | Polypropylene |

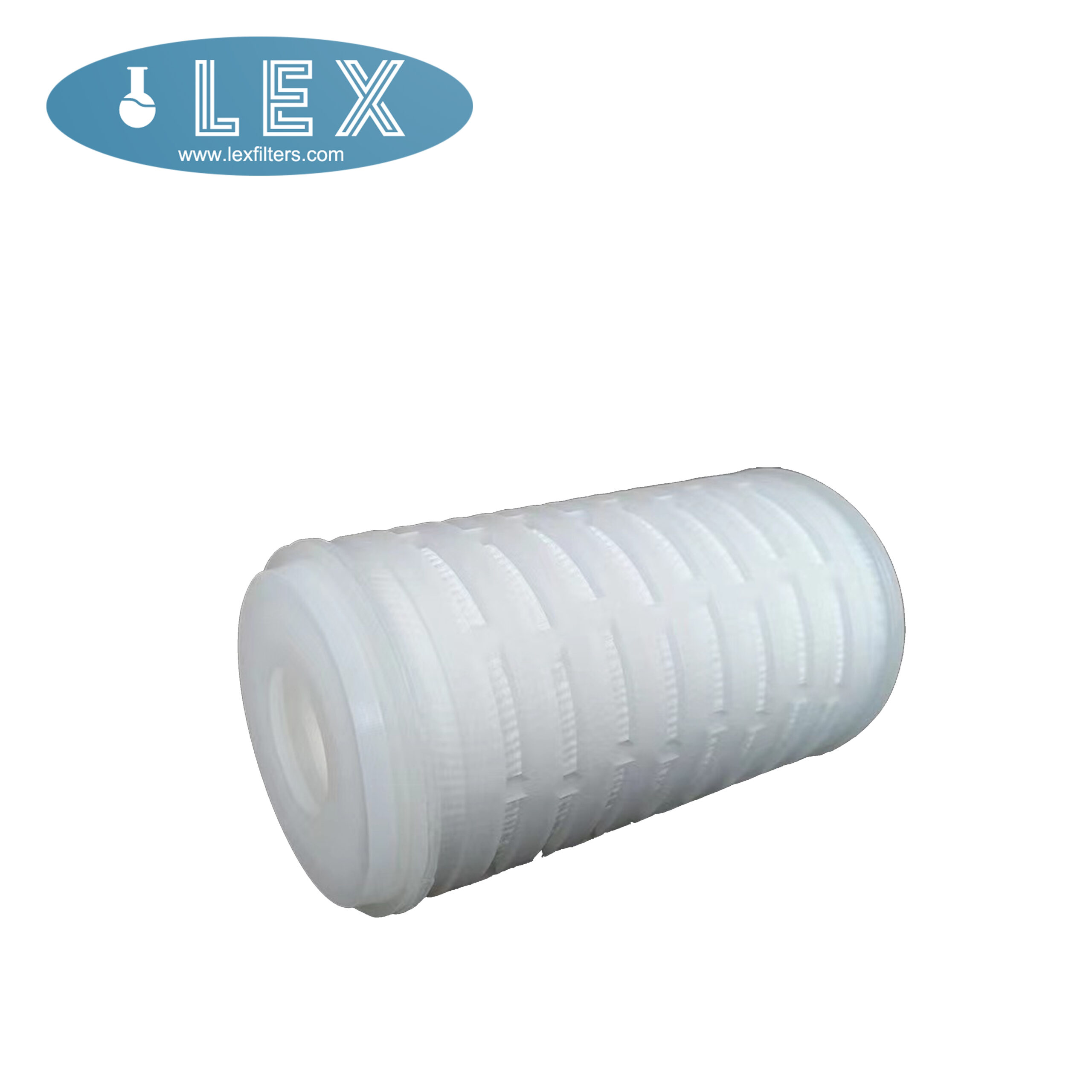

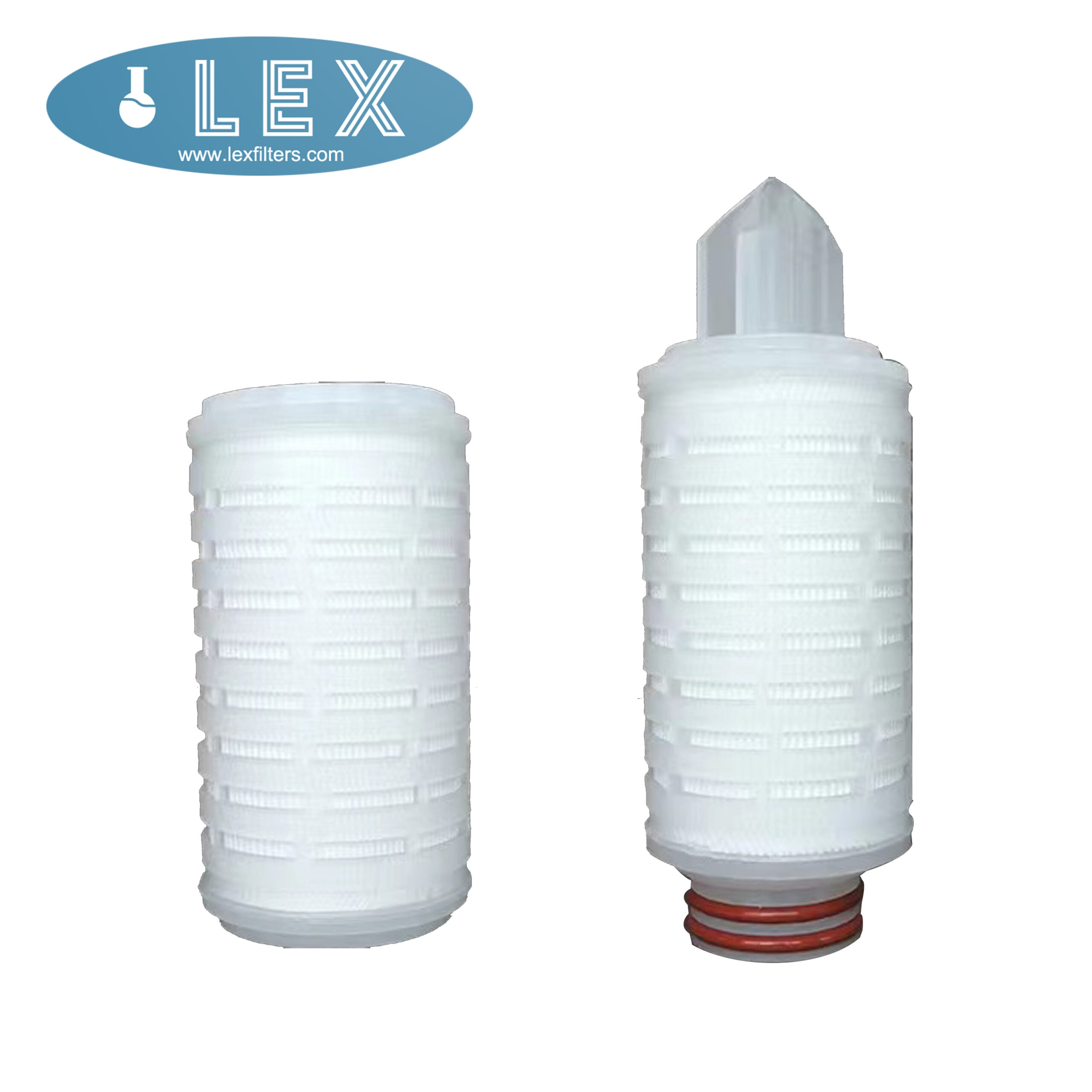

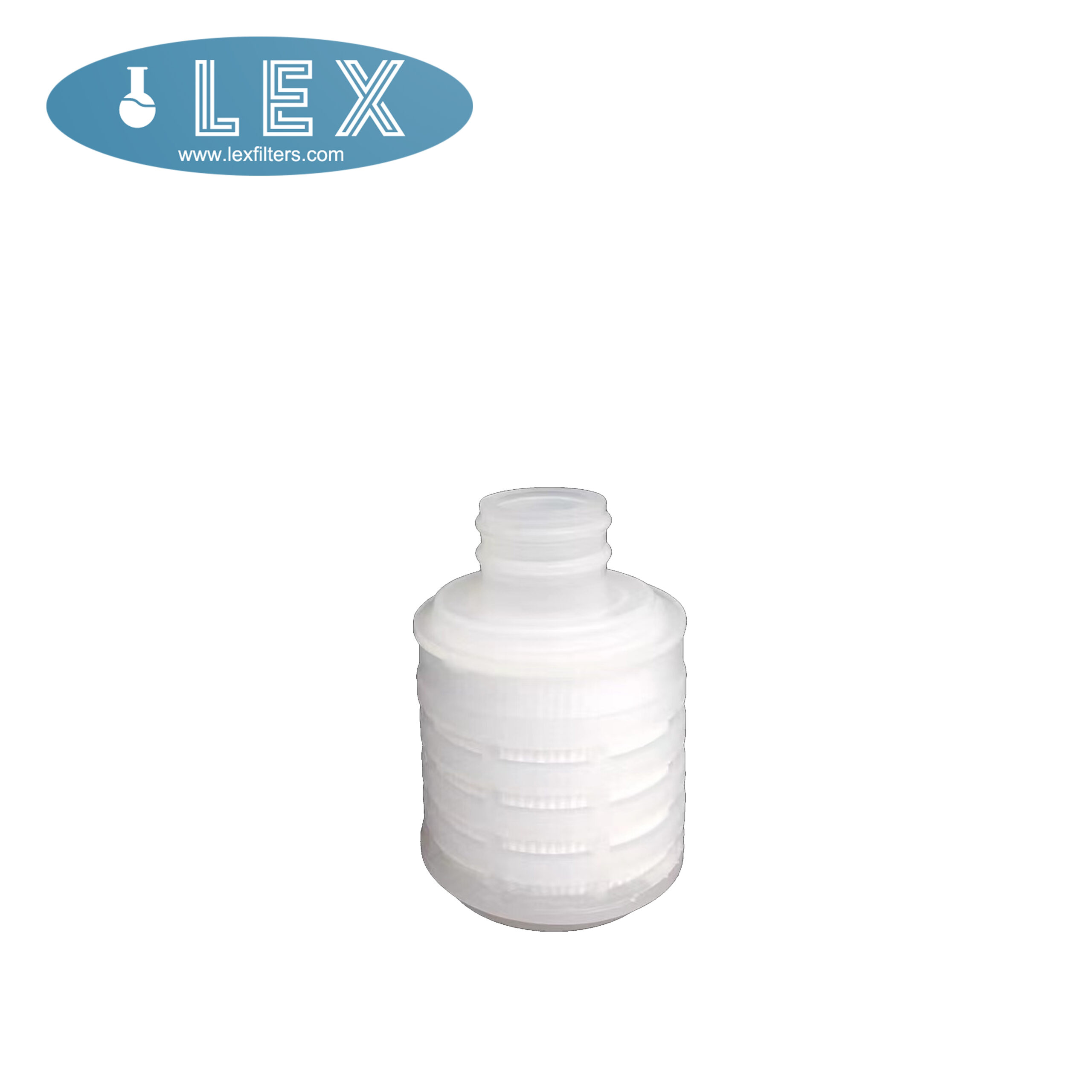

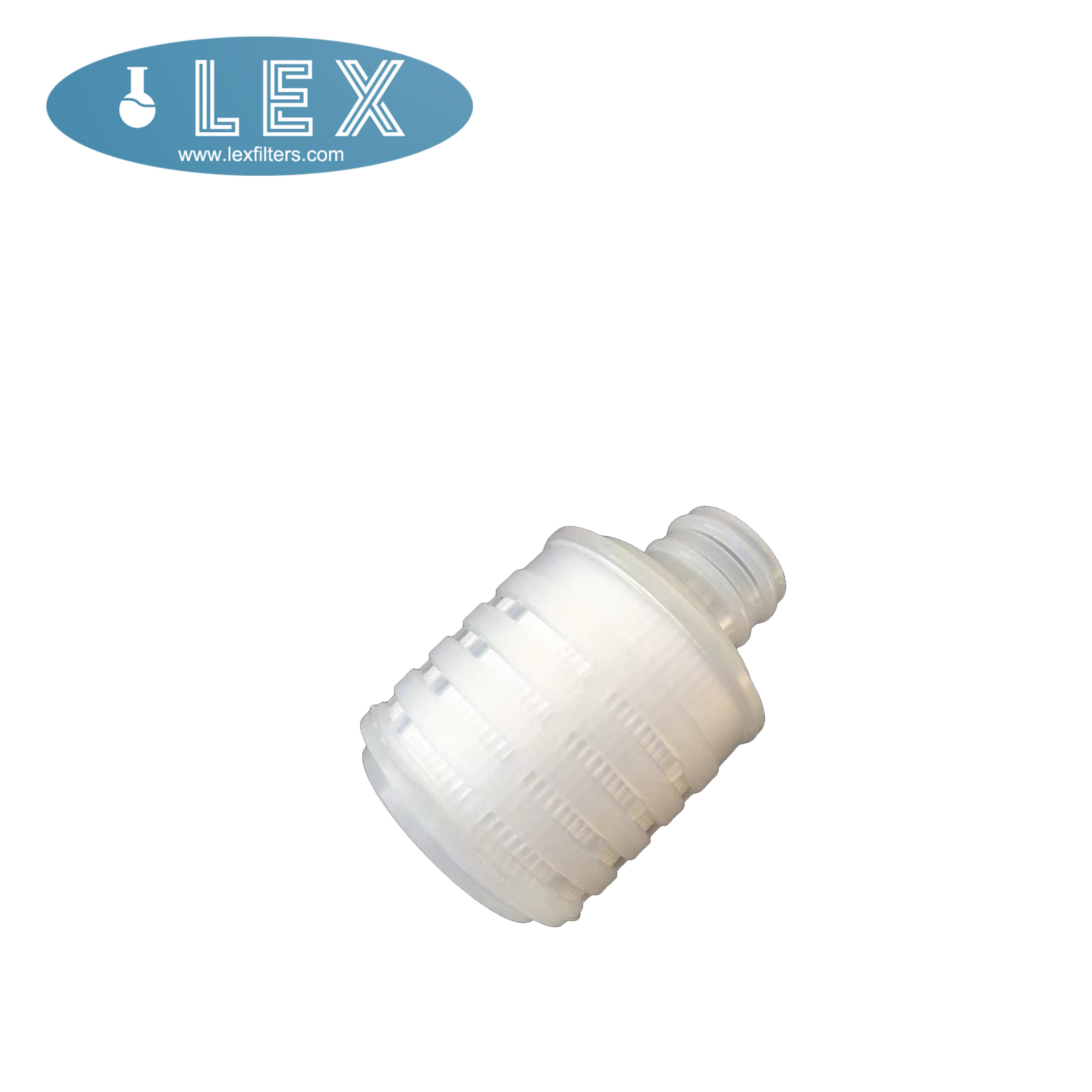

LEXFILTERS Micro Membrane Cartridge Filter Using microporous membrane as material, polypropylene shell is made of hot melt welding. A small volume of the filter element, small loss of filter medium. Suitable for laboratory small flow of liquid and gas filtration.
Structural components
| Media Material | PP; PES; PVDF;PTFE; Nylon |
| Inner Corn | Polypropylene |
| Housing/Center/End Cover | Polypropylene |
| Support Layer | Polypropylene |
| Seal Method | Thermal bonded, No Adhesives |
| O-rings/gaskets | Silicone;EPDM;Viton;Teflon;Nitrile;etc |
Length
| Outer Diameter(mm) | 56 |
| Length(mm) | 70mm including adapter
125mm including adapter |
| Filtration Area(m²) | 70mm:0.12m²
125mm:0.23m² |
Performance
| PH Value | 6-14 |
| Normal Operating Temperature（℃） | up to 60 |
| Maximum Operating Temperature（℃） | 80 |
| Normal Flow Direction | 4.2bar(60psi)@25℃ |
| Reverse Flow Direction | 2.1bar(30psi)@25℃ |
| Sterilization | 30 minutes at 135℃ |
| PP(polypropylene) (μm) | 0.1;0.2;0.45;0.65;1.0;3.0;5.0;10;20;50; |
| PES(Polyether sulfone) (μm) | 0.04;0.1;0.2;0.45;0.65;0.85;1.20 |
| PTFE (μm) | 0.1;0.2;0.45;0.65;1.0;3.0 |
| PVDF (μm) | 0.1;0.2;0.45;0.65;1.0;3.0 |
| Glass Fiber (μm) | 0.2;0.45;1.0;3.0;5.0 |
| Nylon (μm) | 0.1;0.2;0.45;0.65;1.0;3.0;5.0 |
Safety
| Endotoxin | <0.25EU/ml |
| Extractables | 0.03g/10” |
| HGF-L010025KKS H=chemical GF=Glass Fiber 010=Pore size 0.10μm 025=2.5″ KK=220 220 S=Silicone |
|||||||||||
| Code | Grade | Code | Media | Code | Pore Size(um) | Code | Length(in) | Code | Connection | Code | O-ring/Gasket |
| H | Chemical | GF | Glass Fiber | 010 | 0.20 | 025 | 2.5″ | KK | 220 | S | Silicone |
| E | Electronic | 020 | 0.45 | 5 | 5″ | LN | 222/W | V | Viton | ||
| P | Phamaer | 065 | 0.65 | MN | 226/W | E | Epdm | ||||
| F | Food | 100 | 1.00 | LF | 222/Flat | N | Nitrile | ||||
| PF | 215/Flat | T | Teflon | ||||||||
After-sales Service Team.
OEM Service: Customized Logo, Customized Package.
Delivery time:3-5 working days.
Shipping: Express(FedEx;UPS;TNT;DHL,etc) / Sea shipping/Air shipping/By train.
Packing: Free pallet package (OEM Packing is also available).
