| Media | Nylon66 |
|---|---|
| Sealing | Silicone;EPDM;Viton;Teflon;Nitrile;etc |
| Length | 10”,20”,30”,40” |
| Housing/Center/End Cover | Polypropylene |
LEXFILTERS Nylon66, The shell material is polypropylene. Natural hydrophilic membrane, alkali resistance, temperature resistance, oil resistance and solvent resistance, suitable for liquid filtration.
Structural components
| Media Material | Nylon66 |
| Inner Corn | Reinforced Polypropylene |
| Housing/Center/End Cover | Reinforced Polypropylene |
| Support Layer | Polypropylene |
| Pore Size(μm) | 0.1;0.2;0.45;0.65;1.0;3.0;5.0 |
| Seal Method | Thermal bonded,No Adhesives |
| O-rings/gaskets | Silicone;EPDM;Viton;Teflon;Nitrile;etc |
Dimensions
| Outer Dimension | 69mm(2.75”) |
| Inner Dimension | 33mm(1.30”) |
| Length | 254mm(10”);508mm(20”);762mm(30”);1016mm(40”) |
| Filtration Area | 0.65㎡per 10” |
Performance
| PH Value | 6-14 |
| Normal Operating Temperature（℃） | up to 60 |
| Maximum Operating Temperature（℃） | 80 |

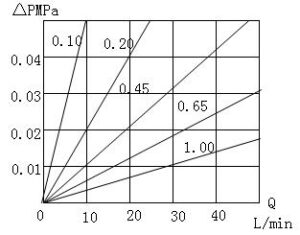

| Normal Flow Direction | 4.2bar(60psi)@25℃ |
| Reverse Flow Direction | 2.1bar(30psi)@25℃ |
| Sterilization | 30 minutes at 135℃
Cumulative time:3 hours Autoclave 30mins(optional) |
Safety
| Endotoxin | <0.25EU/ml |
| Extractables | 0.03g/10” |
| HNY02010KKS H=chemical Nylon=Nylon Material 020=Pore size 0.20μm 10=10″ KK=DOE S=Silicone |
|||||||||||
| Code | Grade | Code | Media | Code | Pore Size(um) | Code | Length(in) | Code | Connection | Code | O-ring/Gasket |
| H | Chemical | Nylon | Nylon | 020 | 0.20 | 10 | 10″ | KK | DOE | S | Silicone |
| E | Electronic | 045 | 0.45 | 20 | 20″ | LN | 222/Fin | V | Viton | ||
| P | Phamaer | 065 | 0.65 | 30 | 30″ | MN | 226/Fin | E | Epdm | ||
| F | Food | 100 | 1.00 | 40 | 40″ | LF | 222/Flat | N | Nitrile | ||
| PF | 215/Flat | T | Teflon | ||||||||
