Introduction

LEXFILTERS Single Layer PP (polypropylene) Pleated Cartridge Filter is made of polypropylene, which is welded by hot melt. Deep filtration, preferential price, cost-effective, can be used for liquid and gas filtration.

Application

• Clarification filtration in the wastewater treatment industry.
• Pre-filtration of the reverse osmosis water system in the electronics industry.
• Filtration of liquor, mineral water, pure water, fruit juice, and other liquids.
• The organic solution, ink, electroplating water, metal cutting fluid, photographic resist, and other liquid filtration.
• Pharmaceutical liquid, biological products, pharmaceutical solvents in the pharmaceutical industry. Prefiltration of compressed air and other liquids or gases.

Product Features

• Low-pressure differential.
• High purity water washing, no fiber shedding.
• Wide filtration precision, suitable for various industries.
• Strong alkali resistance, with a wide range of chemical compatibility.

Technical Specification

Structural components

Media Material	Single Layer PP (polypropylene)
Inner Corn	Reinforced Polypropylene
Housing/Center/End Cover	Reinforced Polypropylene
Support Layer	Polypropylene
Pore Size(μm)	0.1;0.2;0.45;0.65;1.0;3.0;5.0;10;20;50;
Seal Method	Thermal bonded,No Adhesives
O-rings/gaskets	Silicone;EPDM;Viton;Teflon;Nitrile;etc

Dimensions

Outer Dimension	69mm(2.75”)
Inner Dimension	33mm(1.30”)
Length	254mm(10”);508mm(20”);762mm(30”);1016mm(40”)
Filtration Area	0.65㎡per 10”

Performance

PH Value	1-13
Normal Operating Temperature（℃）	up to 60
Maximum Operating Temperature（℃）	80
Normal Flow Direction	4.2bar(60psi)@25℃
Reverse Flow Direction	2.1bar(30psi)@25℃
Sterilization	30 minutes at 135℃ Cumulative time:3 hours Autoclave 30mins(optional)

Safety

Endotoxin	<0.25EU/ml
Extractables	0.03g/10”

Quality

• The filter elements are produced in a 100.000-grade clean environment.
• Strictly implement the THEISO9001:2015 quality management system.
• All filter core materials and components are made of FDA-certified materials.

Order Information

HPP02010KKS H=chemical PP=PP Material 020=Pore size 0.20μm 10=10″ KK=DOE S=Silicone

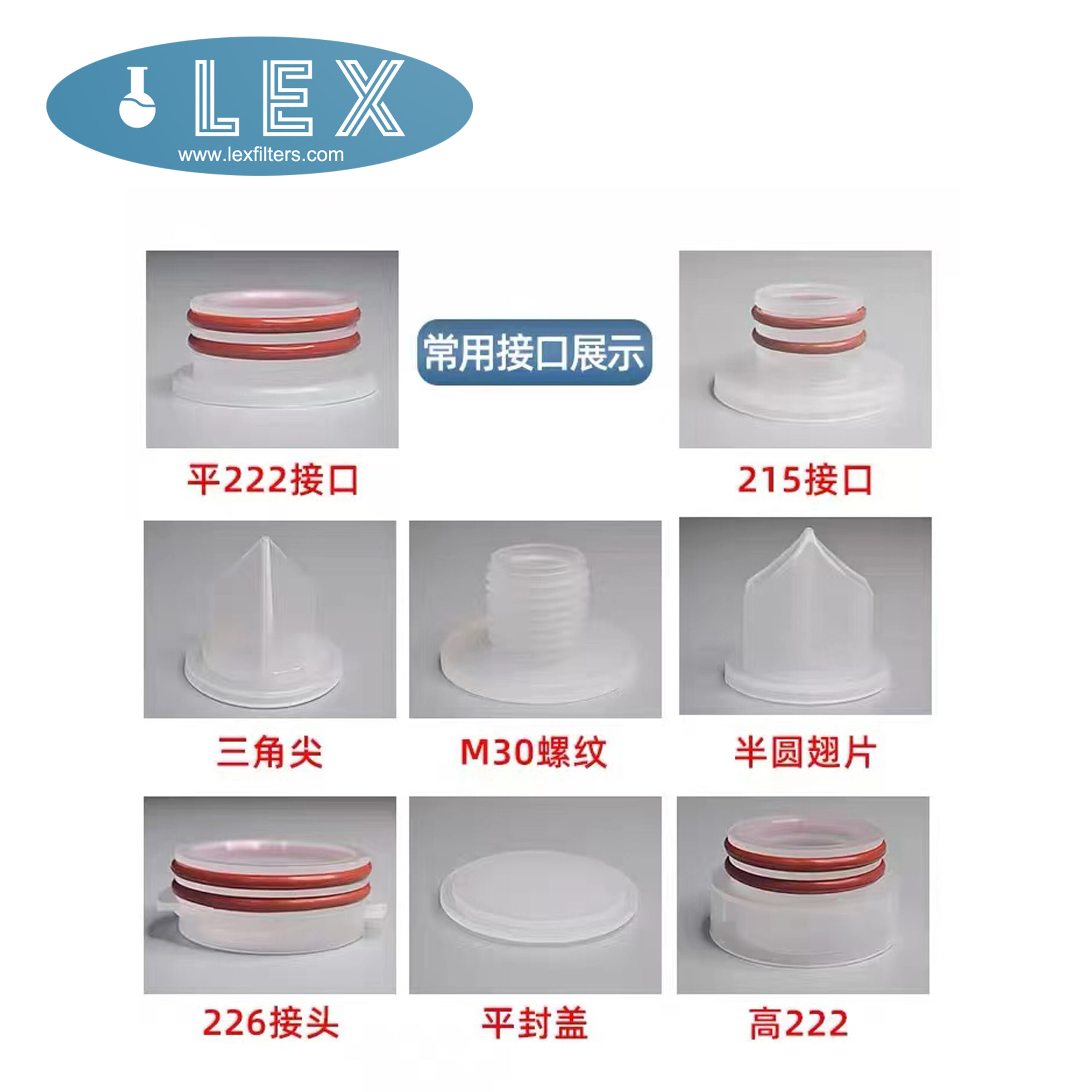

Code	Grade	Code	Media	Code	Pore Size(um)	Code	Length(in)	Code	Connection	Code	O-ring/Gasket
H	Chemical	PP	PP	020	0.20	10	10″	KK	DOE	S	Silicone
E	Electronic			045	0.45	20	20″	LN	222/Fin	V	Viton
P	Phamaer			065	0.65	30	30″	MN	226/Fin	E	Epdm
F	Food			100	1.00	40	40″	LF	222/Flat	N	Nitrile
								PF	215/Flat	T	Teflon

Our Service

After-sales Service Team.

OEM Service: Customized Logo, Customized Package.

Delivery time:3-5 working days.

Shipping: Express(FedEx;UPS;TNT;DHL,etc) / Sea shipping/Air shipping/By train.

Packing: Free pallet package (OEM Packing is also available).
