LPPT Series folded filter is constructed of Hydrophobic PTFE. Corrosion performance and natural hydrophobic, control of metal ion precipitation strictly, suitable for most chemicals, organic solutions and gases.
| Media | Hydrophobic PTFE |
|---|---|
| Sealing | Silicone;EPDM;Viton;Teflon;Nitrile;etc |
| Length | 10”,20”,30”,40” |
| Housing/Center/End Cover | Polypropylene |
LEXFILTERS Hydrophobic PTFE Pleated Cartridge Filter is made of polypropylene frame or stainless steel lining by hot melt welding. Unique pass, strong pollution resistance, acid and alkali resistance, can be used for gas filtration.
Structural components
| Media Material | Hydrophobic PTFE |
| Inner Corn | Reinforced Polypropylene |
| Housing/Center/End Cover | Reinforced Polypropylene |
| Support Layer | Polypropylene |
| Pore Size(μm) | 0.1;0.2;0.45;0.65;1.0;3.0 |
| Seal Method | Thermal bonded,No Adhesives |
| O-rings/gaskets | Silicone;EPDM;Viton;Teflon;Nitrile;etc |
Dimensions
| Outer Dimension | 69mm(2.75”) |
| Inner Dimension | 33mm(1.30”) |
| Length | 254mm(10”);508mm(20”);762mm(30”);1016mm(40”) |
| Filtration Area | 0.65㎡per 10” |

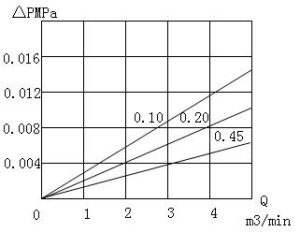

Performance
| PH Value | 1-14 |
| Normal Operating Temperature（℃） | up to 65 |
| Maximum Operating Temperature（℃） | 90 |
| Normal Flow Direction | 4.2bar(60psi)@25℃ |
| Reverse Flow Direction | 2.1bar(30psi)@25℃ |
| Sterilization | 30 minutes at 135℃
Cumulative time:3 hours Autoclave 30mins(optional) |
Safety
| Endotoxin | <0.25EU/ml |
| Extractables | 0.03g/10” |
| HPTFE01010KKS H=chemical PTFE=Hydrophobic PTFE 010=Pore size 0.10μm 10=10″ KK=DOE S=Silicone |
|||||||||||
| Code | Grade | Code | Media | Code | Pore Size(um) | Code | Length(in) | Code | Connection | Code | O-ring/Gasket |
| H | Chemical | PTFE | Hydrophobic PTFE | 010 | 0.20 | 10 | 10″ | KK | DOE | S | Silicone |
| E | Electronic | 020 | 0.45 | 20 | 20″ | LN | 222/Fin | V | Viton | ||
| P | Phamaer | 065 | 0.65 | 30 | 30″ | MN | 226/Fin | E | Epdm | ||
| F | Food | 100 | 1.00 | 40 | 40″ | LF | 222/Flat | N | Nitrile | ||
| PF | 215/Flat | T | Teflon | ||||||||
OEM Service: Customized Logo, Customized Package.
Delivery time:3-5 working days.
Shipping: Express(FedEx;UPS;TNT;DHL,etc) / Sea shipping/Air shipping/By train.
Packing: Free pallet package (OEM Packing is also available).
Send us a message if you have any questions or request a quote. Our experts will give you a reply within 24 hours and help you select the right product you want.
